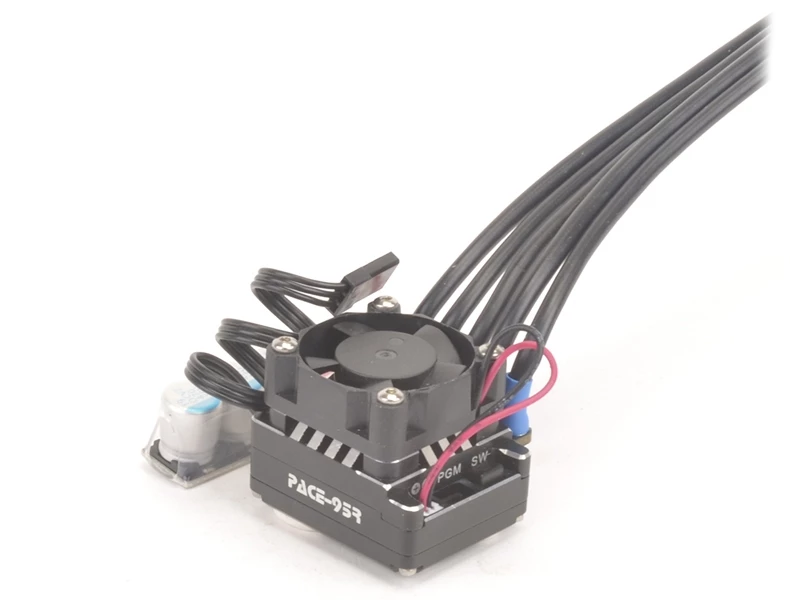

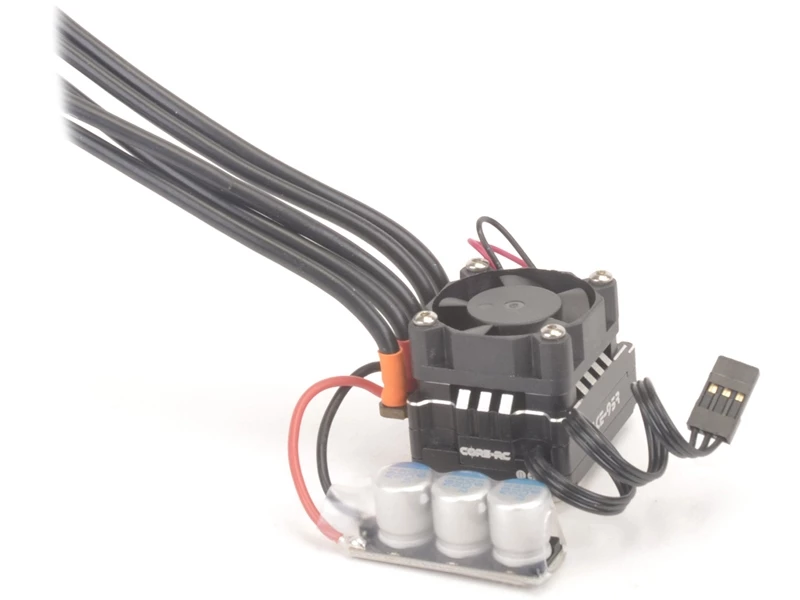

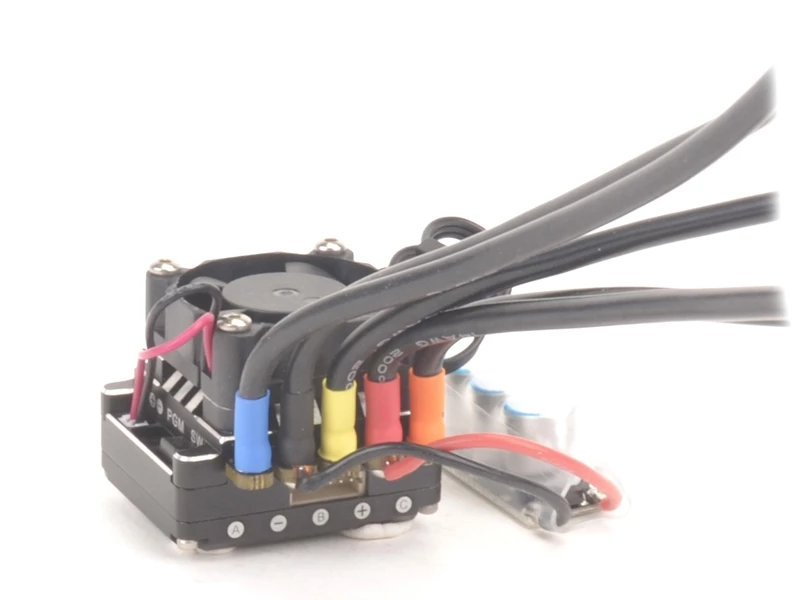

Core RC PACE 95R Brushless ESC – 1S

From CORE RC is this PACE 95R Brushless Speed Control.

Especially designed for 1S, 3.7V vehicles, such as F1 Stock Cars, GT12 and LMP12.

BRCA Legal !

Features:

• PACE 95R – Brushless 95Amp Electronic Speed Controller.
• Supports 1S LiPo or 3 Cell NiCd/NiMh Battery Pack.
• Forward/Brake with Reverse or Forward/Brake Options.
• Adjustable Low Voltage Cut-Off Protection.
• Easy Single Step Set Up System.
• Digital Program Card available (CR818) (Required to adjust set up parameters)
• Sensored or Sensorless operation.
• Fan Included.
• Built in one touch On/Off button with LED.
• Alloy case for great cooling.

Technical Specifications

• Continuous current: 95A (1:10)
• Burst Current (10 Sec): 600A
• Battery Input: 3.7-3.8V LiPo 1S or 3.6v NiCd/NiMH 3 cell pack.
• BEC Output: Linear 6.0/7.4V adjustable/2A
• Weight (Not including fan): 50g
• Dimensions: (Including fan): 38L x 36W x 31H mm.

Items Included

• Speed Control
• Power Capacitor
• 30x30mm Fan
• 190mm Sensor lead.

Specification

Manufacturer	Core RC
Part Number	CR817
EAN	5051294170707
Power Rating	Upto 90 amps
Battery Connector Type	No Connector
ESC Mode	Forward/Reverse
Battery Compatibility	LiPo
ESC Type	For Brushless Motors
Motor Connector Type	No Connector
Motor Compatibility Type	Sensored / Sensorless
Max Lipo Volt Rating	3.7v / 1s
